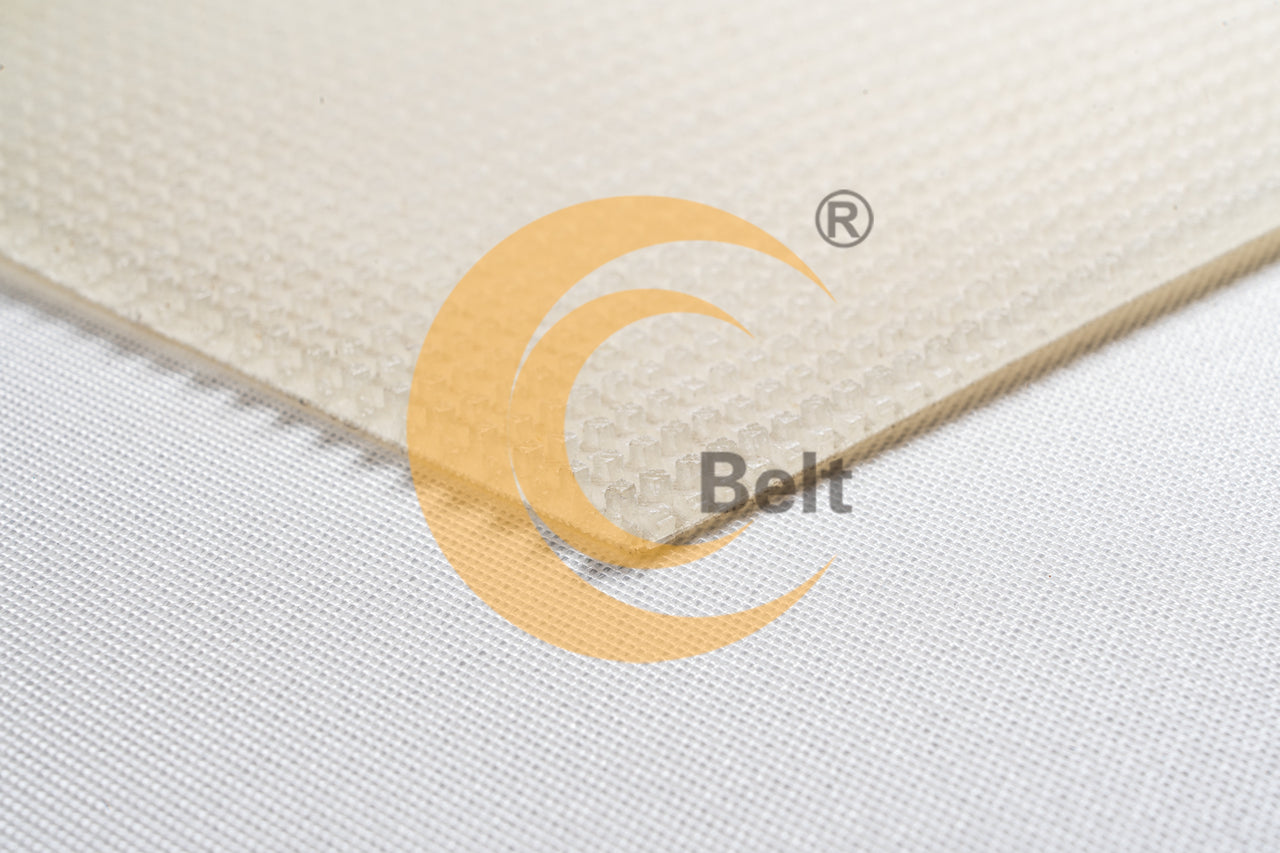

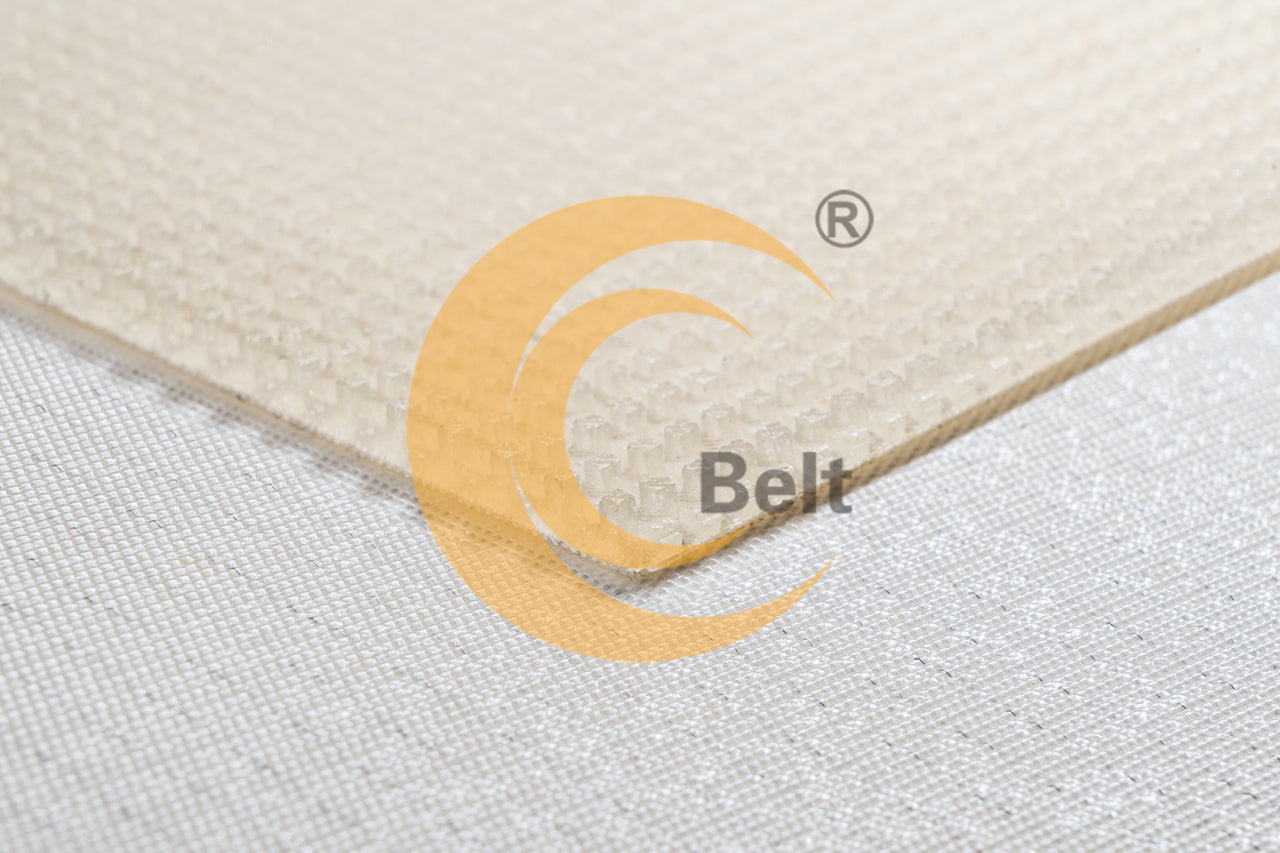

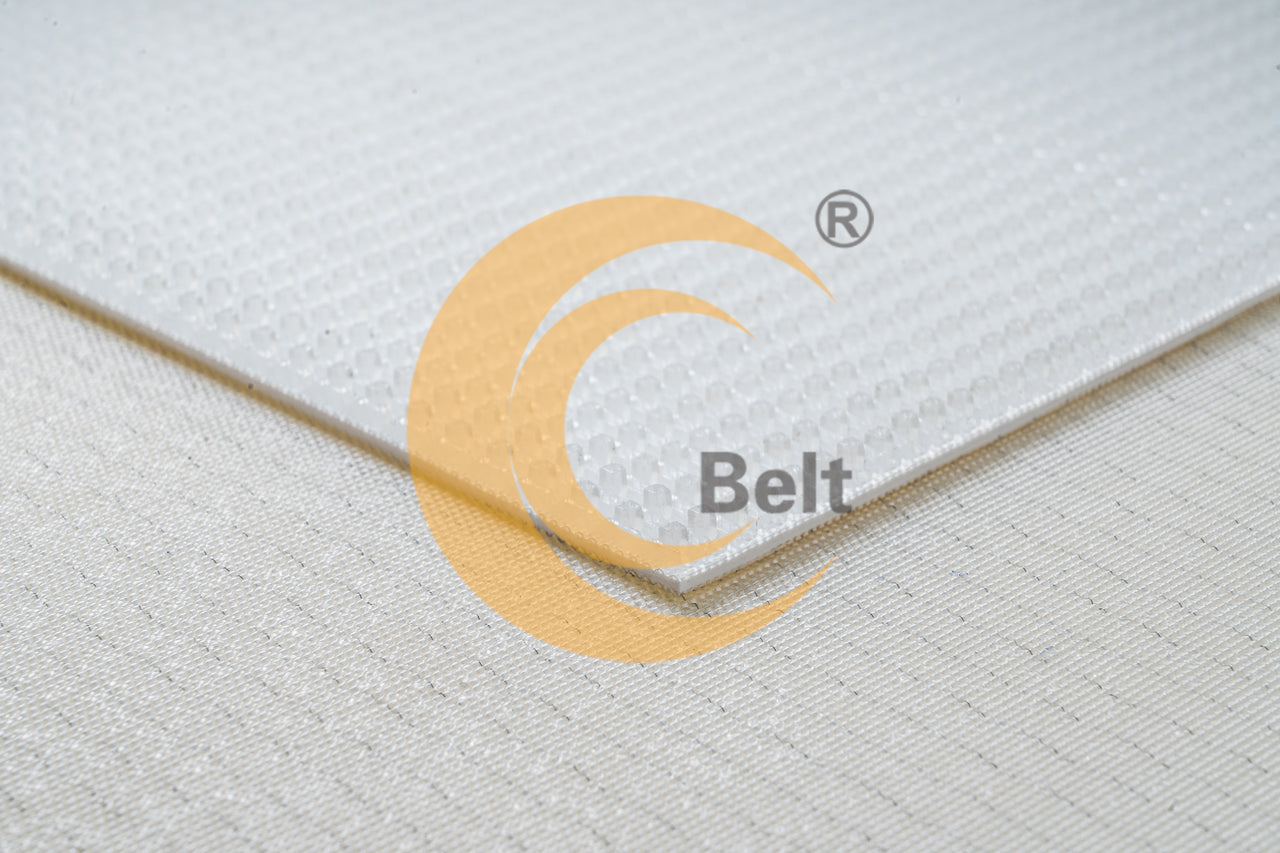

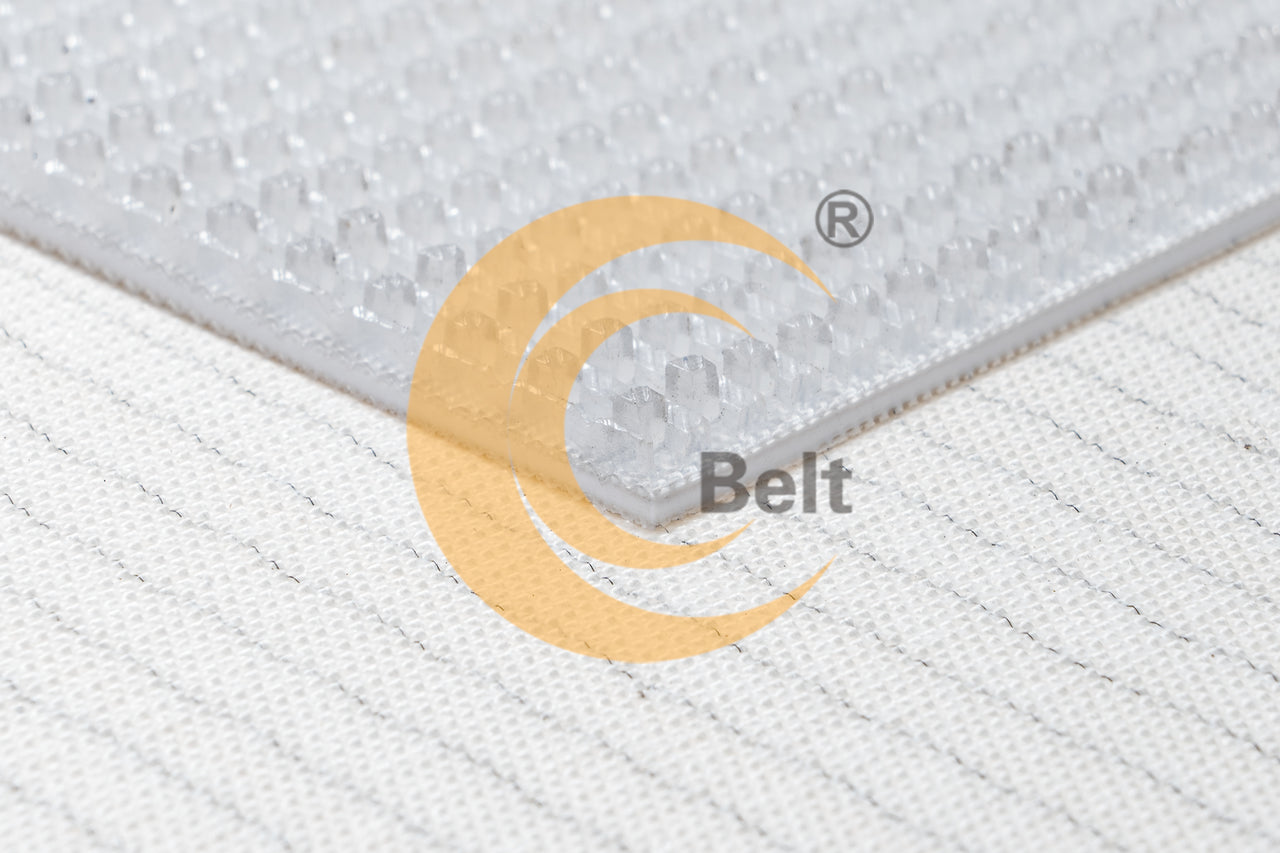

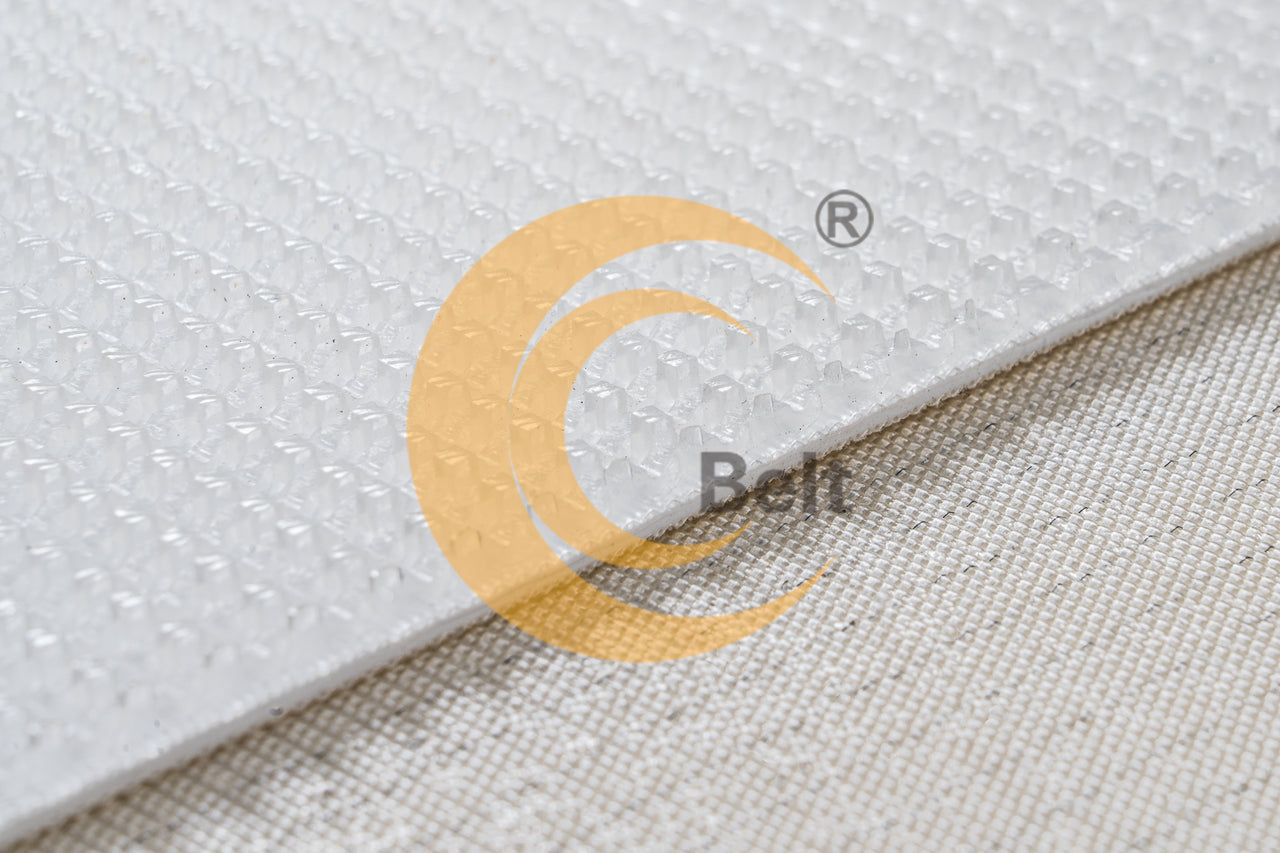

This transparent PU-PVC conveyor belt combines all advantages of PU and PVC material, wear resistance with a non-slip surface, ensuring secure and efficient inclined conveying. Its anti-oil properties make it suitable for handling greasy or oily products, while the durable construction guarantees long service life. Ideal for industries requiring both visibility and performance.
Custom colors, thicknesses, profiles and special features available upon request, please contact us for more information.
| TYPE # | |
| EM200/2:0+3.0U/6.0TMPU/WP/AS | |
| REFERENCE # | |
| GENERAL CHARACTERISTICS: | |
| SUITABLE FOR MOST OF LINES AND PRODUCTS | |
| GENERAL TRANSPORT | |
| SLOPE CONVEYING | |
| WEAR RESISTANT | |
| TECHNICAL CHARACTERISTICS : | |
| Total Thickness | 6.0 mm |
| No. of Plies | 2 |
| Fabric | Polyester(EM) |
| Weft | Rigid |
| Weight | 5.4 kg(s)/㎡ |
| Working Temperatures | -10 ºC to + 70 ºC |
| 1. Top cover | |
| Thickness | 3.0 mm |
| Material | TPU |
| Color | Transparent (TM) |
| Surface | Square Supergrip (U) |
| Hardness | 92 ShA |
| 2. Internal layer(s) | |
| Material | PVC |
| Color | White (W) |
| 3. Bottom cover | |
| Thickness | - |
| Material | - |
| Color | Natural |
| Surface | Bare Fabric |
| Hardness | - |
| Anti-static Yarn | Yes |
| BELT TENSION: | |
| Tensile Strength(N/mm) | 200 |
| Max. Suggested Load(N/mm) | 12 |
| Working Load 1% Elongation(N/mm) | 14 |
| FRICTION COEFFICIENTS ON: | |
| Smooth Stainless Steel | 0.18 |
| REMARKS | |
| Max. Manufacturing Width | 2000mm |
| Standard Width | 2000mm |
| MINIMUM PULLEY DIAMETERS: | |
| Front Flexing | 80 mm |
| Back Flexing | 100 mm |
| CONVEYOR FRAME: | |
| Horizontal Rollers | Yes |
| Slider bed | Yes |
| Troughed application | No |
| SPECIAL CHARACTERISTICS: | |
| Food Grade | Yes, FDA |
| Oil Resistant | Yes |
| Flame Retardant | No |
| Surface Antistatic | No |
| Cold Resistant | No |
| JOINING INSTRUCTIONS: | |
| Finger Joint | Yes |
| Welding Temperature（°C） | 175 °C ± 10 °C |
| Pressure | 2 bar |
| Cooling | Cool Immediately |
