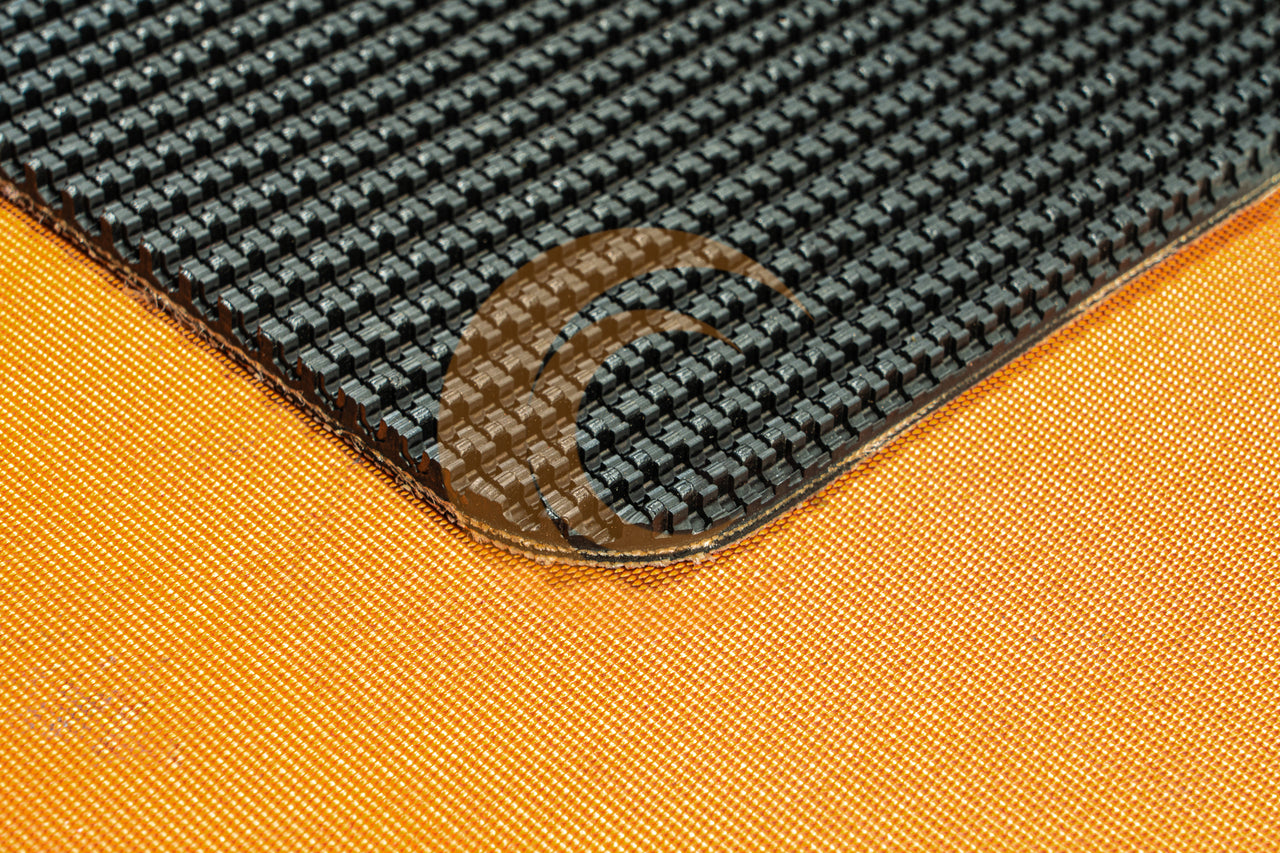

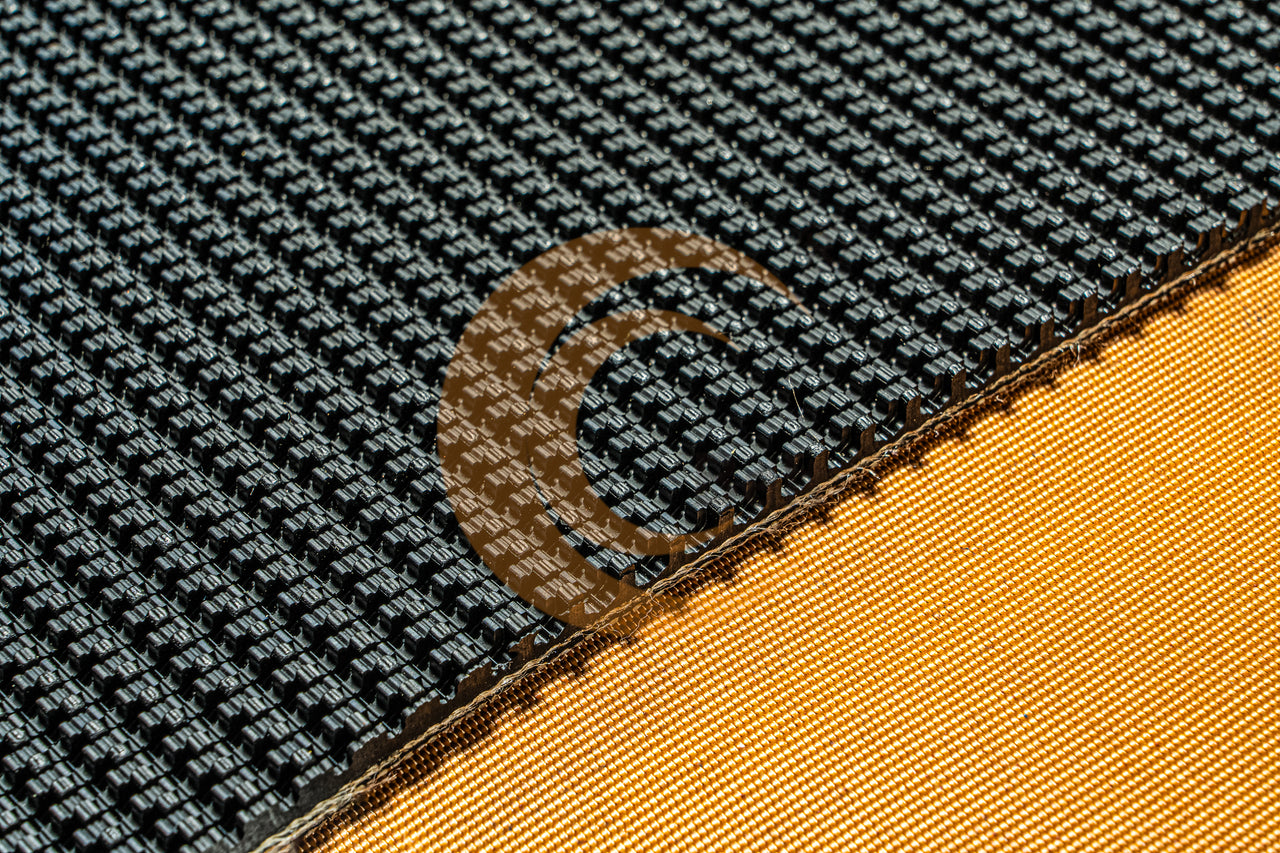

New Square SuperGrip Profile specially designed for inclined and declined conveying applications, where enhanced grip and material stability are essential. Featuring a durable 2-ply EP fabric carcass combined with an advanced New Square SuperGrip surface profile, this belt delivers superior traction to prevent material rollback and ensure smooth, efficient conveying on steep inclines.
✔ New Square SuperGrip profile for enhanced traction on slopes
✔ 2-ply EP fabric reinforcement for strength and flexibility
✔ Prevents material slippage during inclined conveying
✔ Excellent abrasion resistance for extended service life
✔ Stable tracking and dimensional stability under load
✔ Suitable for demanding industrial environments
Custom colors, thicknesses, profiles and special features available upon request, please contact us for more information.
| TYPE # | |
| EP250/2:0+4.2U/6.3B | |
| REFERENCE # | |
| GENERAL CHARACTERISTICS: | |
| SUITABLE FOR MOST OF PRODUCTION LINES | |
| GENERAL TRANSPORT | |
| SLOPE CONVEYING | |
| TECHNICAL CHARACTERISTICS : | |
| Total Thickness | 6.3 mm |
| No. of Plies | 2 |
| Fabric | EP Fabric |
| Weft | Flexible |
| Weight | 5.8 kg(s)/㎡ |
| Working Temperatures | -20 ºC to + 60 ºC |
| 1. Top cover | |
| Thickness | 4.2 mm |
| Material | Rubber |
| Color | Black (B) |
| Surface | Square Supergrip (U) |
| Hardness | 65 ShA |
| 2. Internal layer(s) | |
| Material | Rubber |
| Color | Black (B) |
| 3. Bottom cover | |
| Thickness | - |
| Material | - |
| Color | Natural |
| Surface | Bare Fabric |
| Hardness | - |
| Anti-static Yarn | - |
| BELT TENSION: | |
| Tensile Strength(N/mm) | 250 |
| Max. Suggested Load(N/mm) | 45 |
| Working Load 1% Elongation(N/mm) | 49 |
| FRICTION COEFFICIENTS ON: | |
| Smooth Stainless Steel | 0.18 |
| REMARKS | |
| Max. Manufacturing Width | 2000 mm |
| Standard Width | |
| MINIMUM PULLEY DIAMETERS: | |
| Front Flexing | 80 mm |
| Back Flexing | 100 mm |
| CONVEYOR FRAME: | |
| Horizontal Rollers | Yes |
| Slider bed | Yes |
| Troughed application | Yes |
| SPECIAL CHARACTERISTICS: | |
| Food Grade | No |
| Oil Resistant | No |
| Flame Retardant | No |
| Surface Antistatic | No |
| Cold Resistant | No |
| JOINING INSTRUCTIONS: | |
| Joining Method | Steel Fastener |
