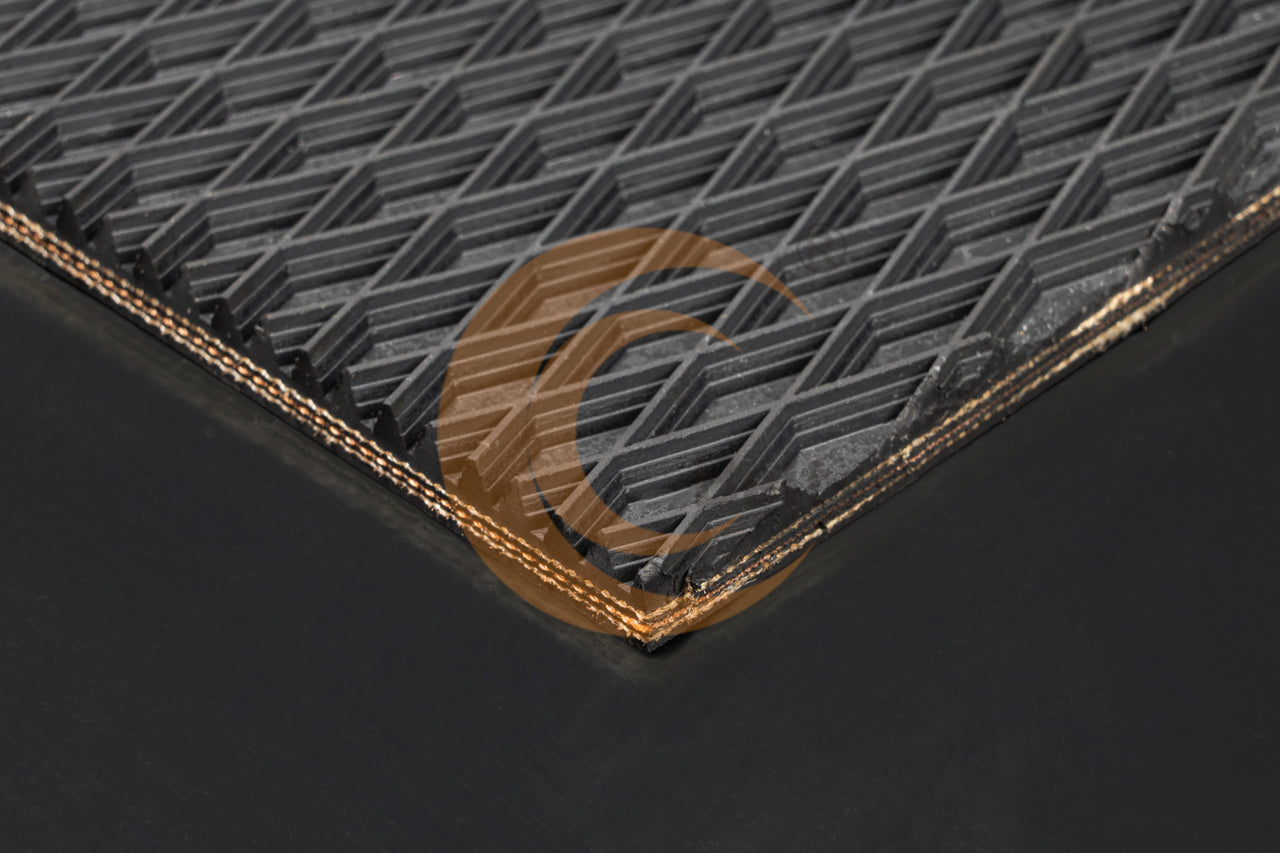

Cold resistant lightweight rubber conveyor belt crafted for sanding applications in cold environments. Designed to withstand low temperatures without compromising performance.
Custom colors, thicknesses, profiles and special features available upon request, please contact us for more information.
| TYPE # | |
| EP400/3:1.0+5.5RH/9.5B | |
| REFERENCE # | |
| GENERAL CHARACTERISTICS: | |
| SUITABLE FOR MOST OF PRODUCTION LINES | |
| GENERAL TRANSPORT | |
| INCLINED CONVEYING | |
| ESPECIALLY FOR AGRICULTURE | |
| TECHNICAL CHARACTERISTICS : | |
| Total Thickness | 9.5 mm |
| No. of Plies | 3 |
| Fabric | EP Fabric |
| Weft | Flexible |
| Weight | 8.7 kg(s)/㎡ |
| Working Temperatures | -20 ºC to + 60 ºC |
| 1. Top cover | |
| Thickness | 5.5 mm |
| Material | Rubber |
| Color | Black (B) |
| Surface | Rhombus (RH) |
| Hardness | 65 ShA |
| 2. Internal layer(s) | |
| Material | Rubber |
| Color | Black (B) |
| 3. Bottom cover | |
| Thickness | 1.0 mm |
| Material | Rubber |
| Color | Black (B) |
| Surface | Smooth |
| Hardness | 65 ShA |
| Anti-static Yarn | - |
| BELT TENSION: | |
| Tensile Strength(N/mm) | 400 |
| Max. Suggested Load(N/mm) | 65 |
| Working Load 1% Elongation(N/mm) | 68 |
| FRICTION COEFFICIENTS ON: | |
| Smooth Stainless Steel | 0.18 |
| REMARKS | |
| Max. Manufacturing Width | 1300 mm |
| Standard Width | |
| MINIMUM PULLEY DIAMETERS: | |
| Front Flexing | 160 mm |
| Back Flexing | 220 mm |
| CONVEYOR FRAME: | |
| Horizontal Rollers | Yes |
| Slider bed | Yes |
| Troughed application | Yes |
| SPECIAL CHARACTERISTICS: | |
| Food Grade | No |
| Oil Resistant | No |
| Flame Retardant | No |
| Surface Antistatic | No |
| Cold Resistant | No |
| JOINING INSTRUCTIONS: | |
| Joining Method | Steel Fastener |
