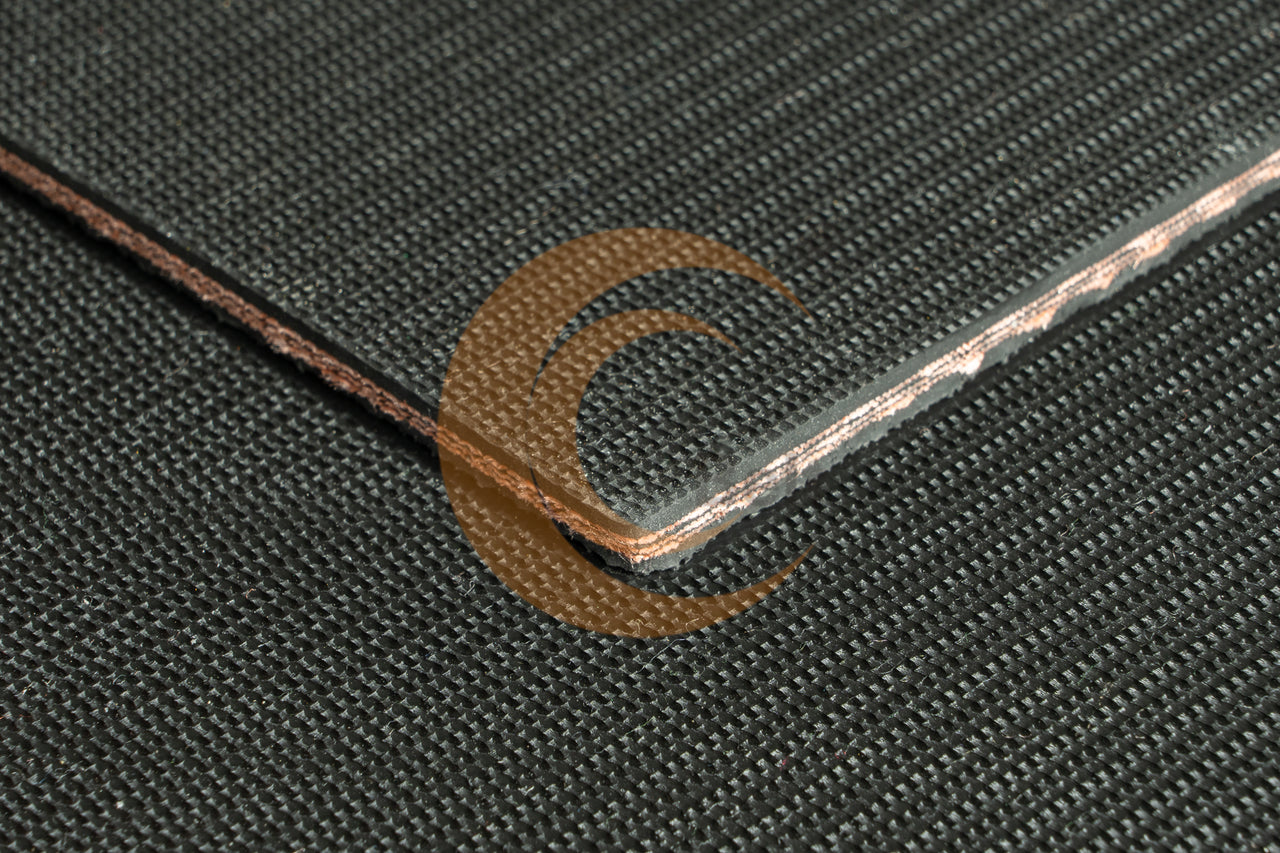

High Impregnation Rubber Belting #EP400/3:1.5HI+2.0HI/6.5B is specially developed for heavy-duty baler machine applications, where superior compression resistance, belt stability, and long-term durability are critical. Featuring a robust 3-ply EP400 carcass combined with a high impregnation rubber structure, this belt is engineered to withstand intensive pressure, repeated compression cycles, and harsh operating conditions.
Custom colors, thicknesses, profiles and special features available upon request, please contact us for more information.
| TYPE # | |
| EP400/3:1.5HI+2.0HI/6.5B | |
| REFERENCE # | |
| GENERAL CHARACTERISTICS: | |
| SUITABLE FOR MOST OF PRODUCTION LINES | |
| ESPECIALLY FOR AGRICULTURE | |
| BALER BELTING | |
| TECHNICAL CHARACTERISTICS : | |
| Total Thickness | 6.5 mm |
| No. of Plies | 3 |
| Fabric | EP Fabric |
| Weft | Flexible |
| Weight | 7.6 kg(s)/㎡ |
| Working Temperatures | -20 ºC to + 60 ºC |
| 1. Top cover | |
| Thickness | 2.0 mm |
| Material | Rubber |
| Color | Black (B) |
| Surface | High Impregnation (HI) |
| Hardness | 65 ShA |
| 2. Internal layer(s) | |
| Material | Rubber |
| Color | Black (B) |
| 3. Bottom cover | |
| Thickness | 1.5 mm |
| Material | Rubber |
| Color | Black (B) |
| Surface | High Impregnation (HI) |
| Hardness | 65 ShA |
| Anti-static Yarn | - |
| BELT TENSION: | |
| Tensile Strength(N/mm) | 400 |
| Max. Suggested Load(N/mm) | 65 |
| Working Load 1% Elongation(N/mm) | 68 |
| FRICTION COEFFICIENTS ON: | |
| Smooth Stainless Steel | 0.35 |
| REMARKS | |
| Max. Manufacturing Width | 1300 mm |
| Standard Width | |
| MINIMUM PULLEY DIAMETERS: | |
| Front Flexing | 80 mm |
| Back Flexing | 100 mm |
| CONVEYOR FRAME: | |
| Horizontal Rollers | Yes |
| Slider bed | Yes |
| Troughed application | Yes |
| SPECIAL CHARACTERISTICS: | |
| Food Grade | No |
| Oil Resistant | No |
| Flame Retardant | No |
| Surface Antistatic | No |
| Cold Resistant | No |
| JOINING INSTRUCTIONS: | |
| Joining Method | Steel Fastener |
