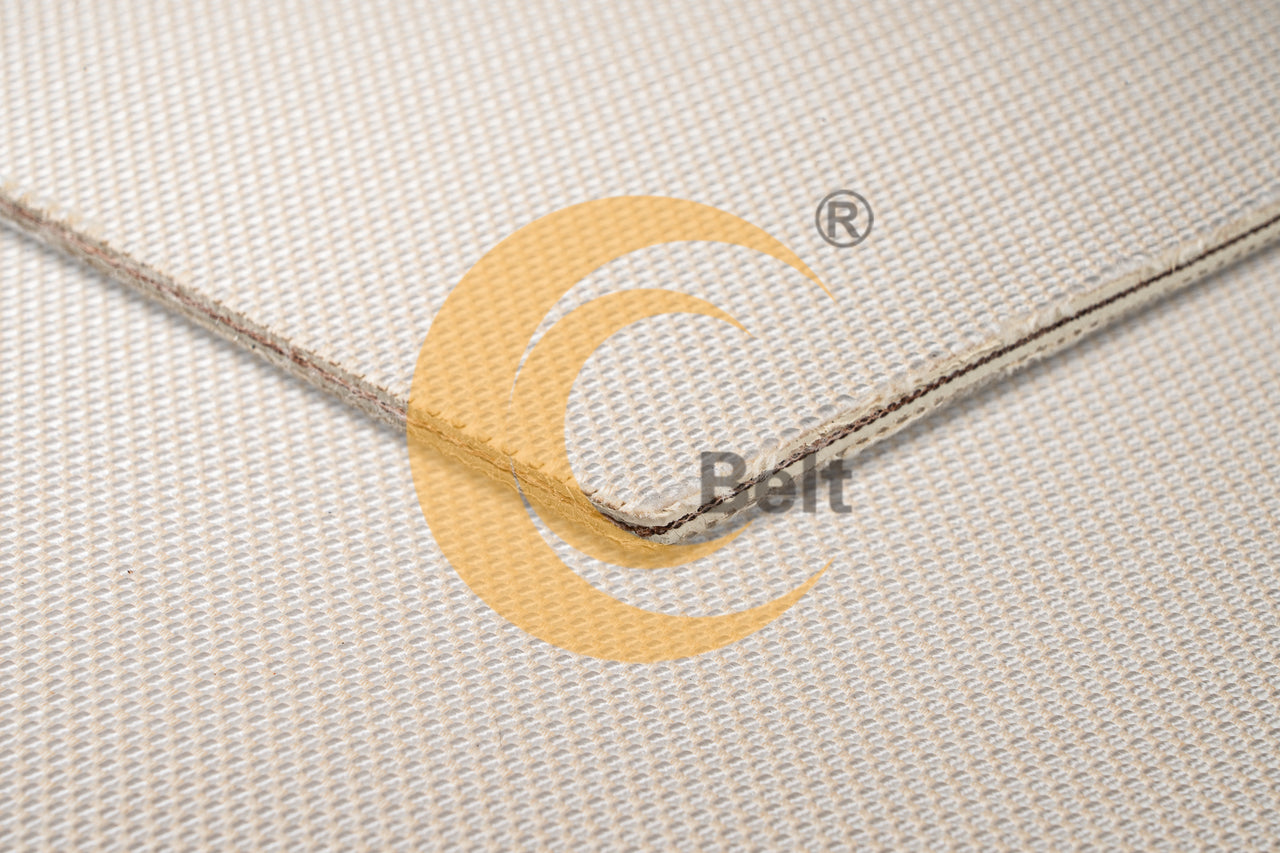

This Bareback Fabric Belt is engineered for stable and reliable conveying in rubber and tire manufacturing processes. Its bareback surface delivers controlled friction without adhesion, making it ideal for precise rubber transfer. The EP fabric construction ensures low elongation, high tensile strength, and consistent tracking under continuous industrial
operation.
Key Features
Custom colors, thicknesses, profiles and special features available upon request, please contact us for more information.
| TYPE # | |
| EC+EP300/3:0+0/4.0W/RUB | |
| REFERENCE # | |
| GENERAL CHARACTERISTICS: | |
| GENERAL TRANSPORT | |
| HEAVY DUTY | |
| ESPECIALLY FOR TIRE INDUSTRY | |
| TECHNICAL CHARACTERISTICS : | |
| Total Thickness | 4.0 mm |
| No. of Plies | 3 |
| Fabric | EC + EP |
| Weft | Flexible |
| Weight | 4.8 kg(s)/㎡ |
| Working Temperatures | -30 ºC to + 80 ºC |
| 1. Top cover | |
| Thickness | - |
| Material | - |
| Color | Natural |
| Surface | Bare EC Fabric |
| Hardness | - |
| 2. Internal layer(s) | |
| Material | Rubber |
| Color | White |
| 3. Bottom cover | |
| Thickness | - |
| Material | - |
| Color | Natural |
| Surface | Bare EC Fabric |
| Hardness | - |
| Anti-static Yarn | - |
| BELT TENSION: | |
| Tensile Strength(N/mm) | 300 |
| Max. Suggested Load(N/mm) | 16 |
| Working Load 2% Elongation(N/mm) | 18 |
| FRICTION COEFFICIENTS ON: | |
| Smooth Stainless Steel | 0.2 |
| REMARKS | |
| Max. Manufacturing Width | 3000mm |
| Standard Width | 2000mm, 3000mm |
| MINIMUM PULLEY DIAMETERS: | |
| Front Flexing | 80 mm |
| Back Flexing | 100 mm |
| CONVEYOR FRAME: | |
| Horizontal Rollers | Yes |
| Slider bed | Yes |
| Troughed application | Yes |
| SPECIAL CHARACTERISTICS: | |
| Food Grade | No |
| Oil Resistant | No |
| Flame Retardant | No |
| Surface Antistatic | No |
| Cold Resistant | No |
| High Temperature | No |
| JOINING INSTRUCTIONS: | |
| Finger Joint | Steel Fastener |
| Welding Temperature（°C） | |
| Pressure | |
| Cooling | |
