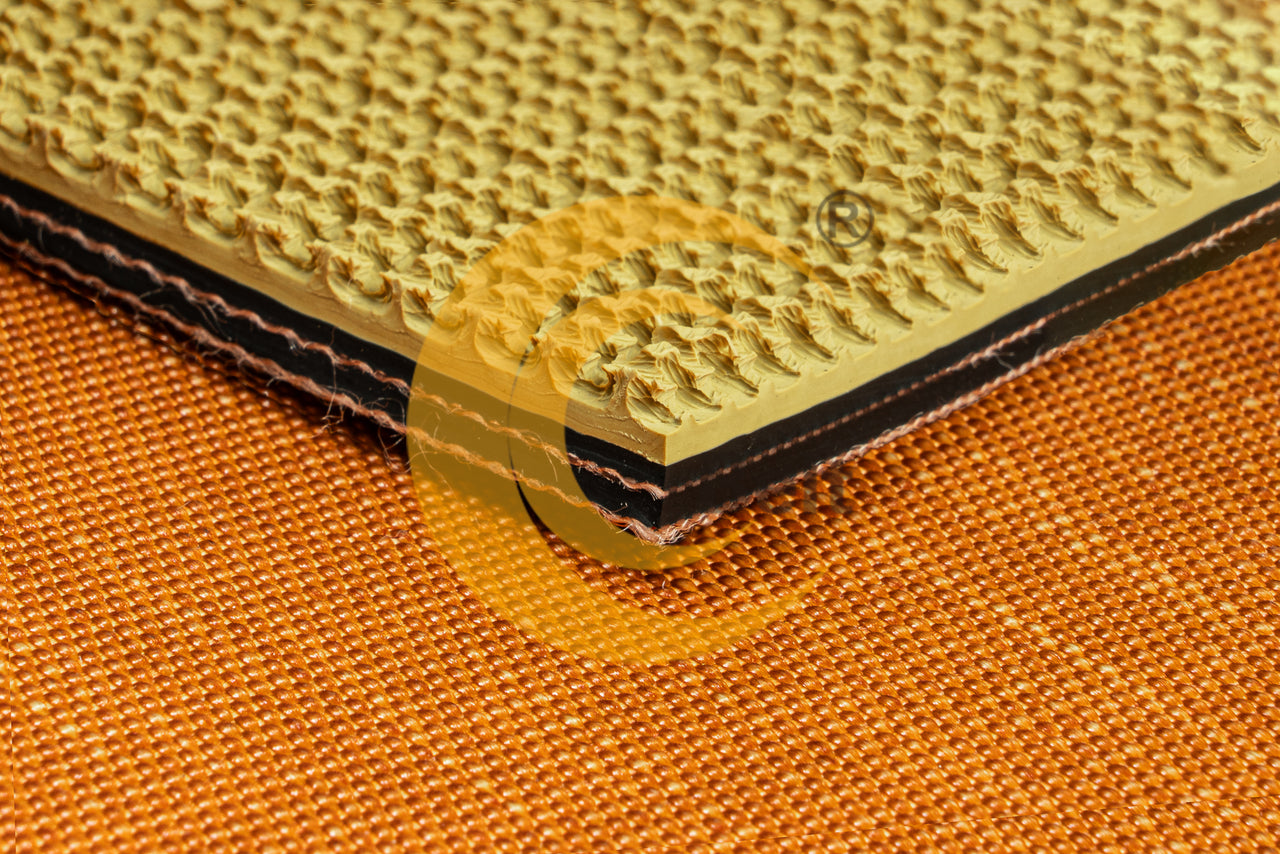

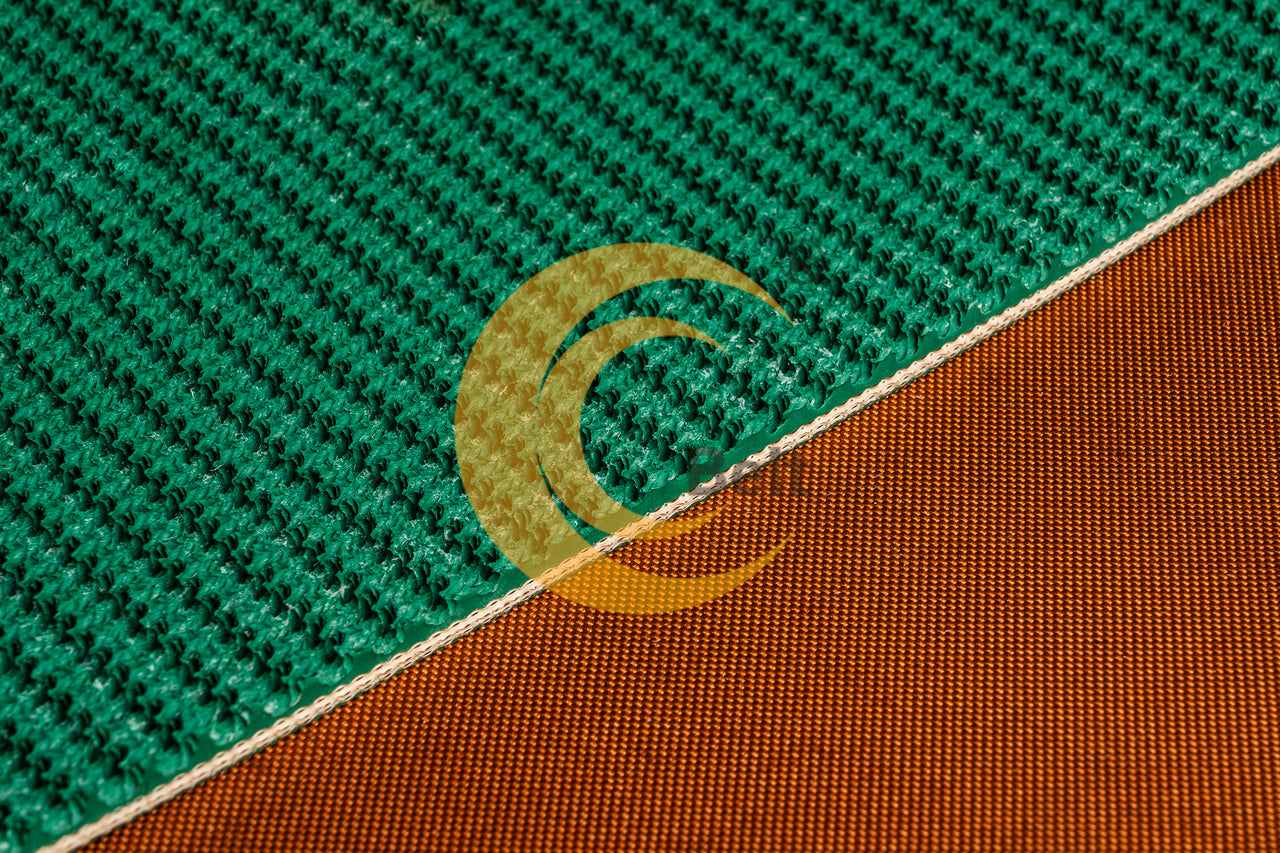

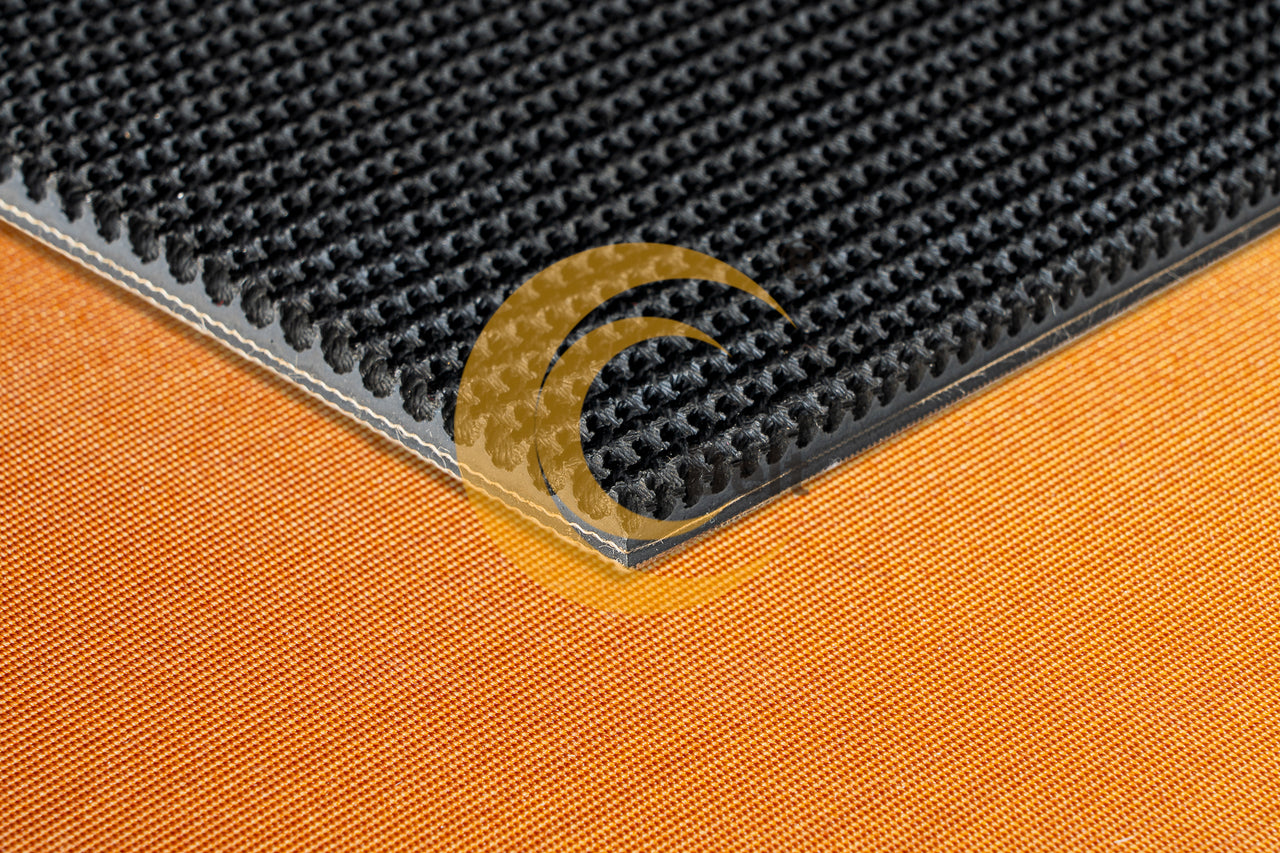

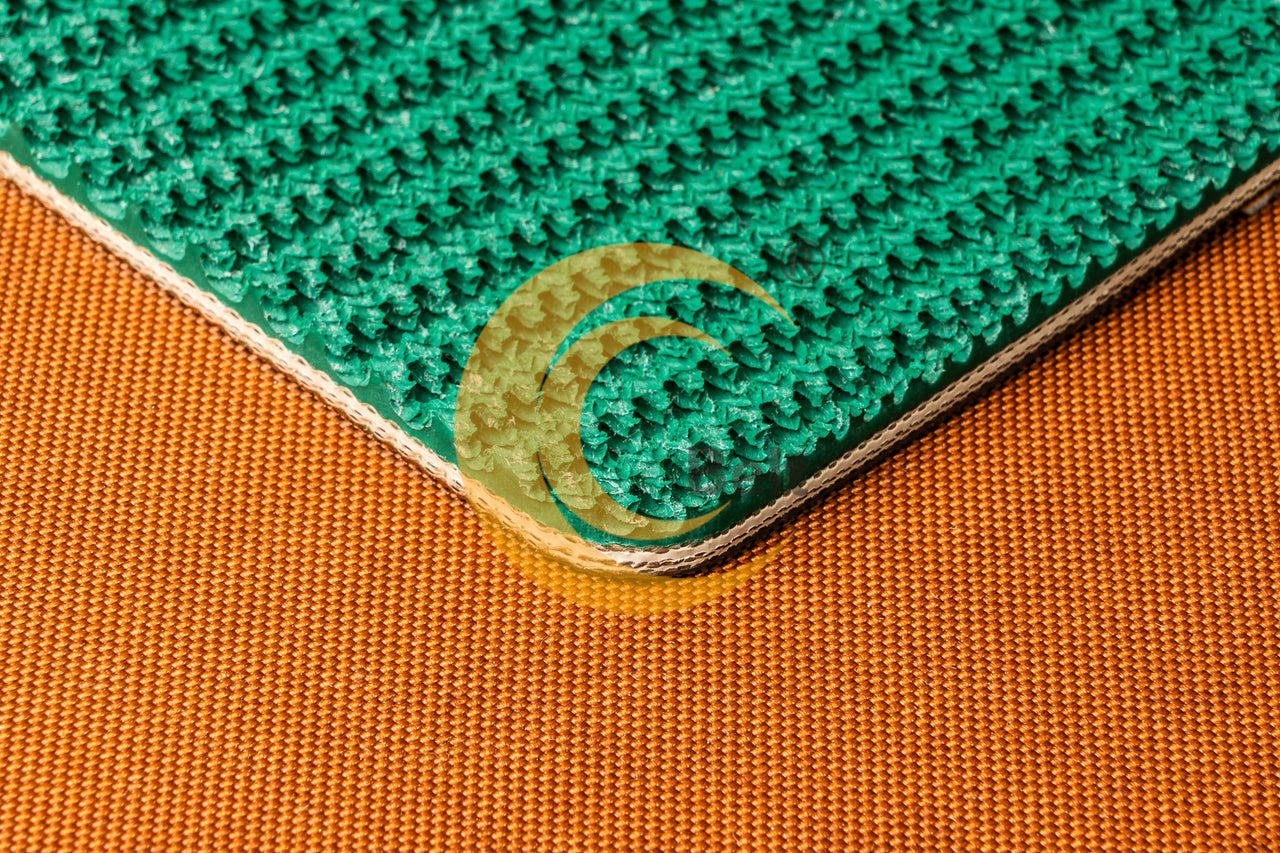

3Ply Lightweight Rubber Belt with SuperGrip Profile engineered specifically for inclined conveying applications. Combining a durable 3-ply fabric carcass with a high-traction SuperGrip top surface, this belt ensures reliable performance even at steep angles.
Custom colors, thicknesses, profiles and special features available upon request, please contact us for more information.
| TYPE # | |
| EP300/3:0+4.0SG/7.5AG | |
| REFERENCE # | |
| GENERAL CHARACTERISTICS: | |
| SUITABLE FOR MOST OF PRODUCTION LINES | |
| ESPECIALLY FOR SLOPE TRANSPORTATION | |
| TECHNICAL CHARACTERISTICS : | |
| Total Thickness | 7.5 mm |
| No. of Plies | 3 |
| Fabric | EP Fabric |
| Weft | Flexible |
| Weight | 7.0 kg(s)/㎡ |
| Working Temperatures | -30 ºC to + 80 ºC |
| 1. Top cover | |
| Thickness | 4.0 mm |
| Material | Rubber |
| Color | Apple Green (AG) |
| Surface | Super Grip (SG) |
| Hardness | 65 ShA |
| 2. Internal layer(s) | |
| Material | Rubber |
| Color | White (W) |
| 3. Bottom cover | |
| Thickness | - |
| Material | - |
| Color | Natural |
| Surface | Bare Fabric |
| Hardness | - |
| Anti-static Yarn | - |
| BELT TENSION: | |
| Tensile Strength(N/mm) | 300 |
| Max. Suggested Load(N/mm) | 23 |
| Working Load 1% Elongation(N/mm) | 25 |
| FRICTION COEFFICIENTS ON: | |
| Smooth Stainless Steel | 0.18 |
| REMARKS | |
| Max. Manufacturing Width | 1800mm |
| Standard Width | 1800mm |
| MINIMUM PULLEY DIAMETERS: | |
| Front Flexing | 90 mm |
| Back Flexing | 110 mm |
| CONVEYOR FRAME: | |
| Horizontal Rollers | Yes |
| Slider bed | Yes |
| Troughed application | No |
| SPECIAL CHARACTERISTICS: | |
| Food Grade | No |
| Oil Resistant | No |
| Flame Retardant | No |
| Surface Antistatic | No |
| Cold Resistant | No |
| JOINING INSTRUCTIONS: | |
| Finger Joint | Steel Fastener |
| Welding Temperature（°C） | |
| Pressure | |
| Cooling | |
