# SELECTION & CUSTOMIZATION GUIDE
Thickness
1.4mm (Light Duty) -- 4.0mm (Heavy duty/ Mining/ Military Grade)
REINFORCEMENT
1-PLY Polyester Fabric
2-PLY Polyester Fabrics

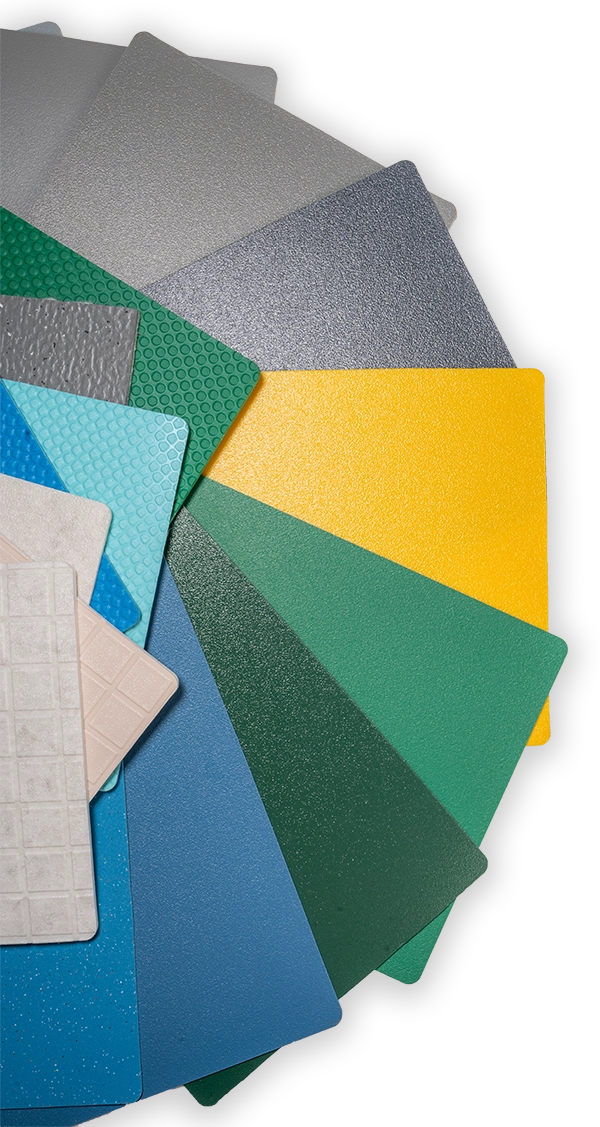

Colors
SURFACE PATTERNS
Smooth
Sand
Hammered
Dot
Rubber Chip Broadcast
Emery Spreading
Square
Functional properties
Stardard
General purpose. Suitable for clean area.
Heavy Duty

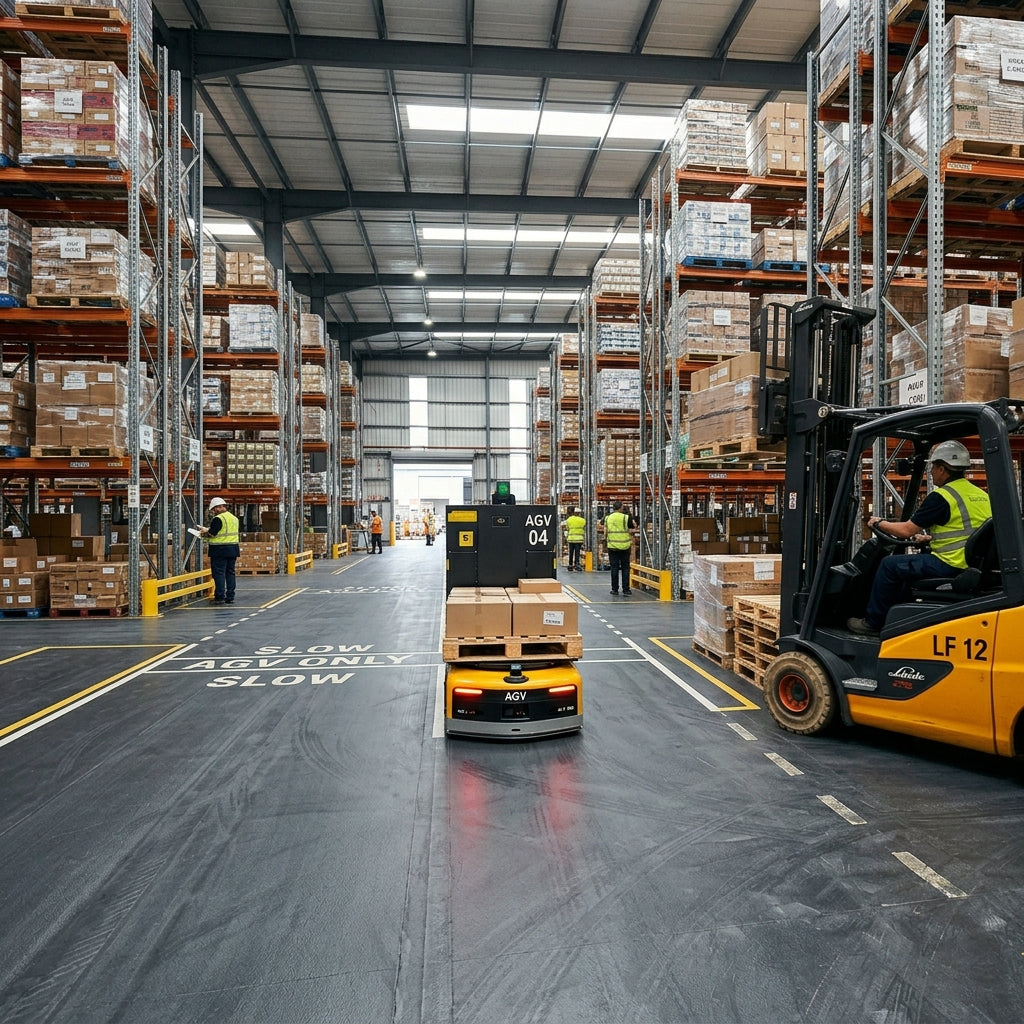

Optimized for folklift and AGVs,
Withstands up to 15 tons weight.
Withstands up to 15 tons weight.
Anti-Static
Permanent ESD-protection.
Chemical-Corrosion Resistant
No degradation under 98% vitriol
# PERFORMANCE & TECHNICAL DATA
Physical Properties
| Product Type | PVC Flooring / Vinyl Flooring Rolls |
| Total Thickness | 1.4 – 4.0 mm |
| Roll Width | Up to 2.0 m |
| Roll Length | 20 – 30 m |
| Structure | Multi-Layer / Polyester-Reinforced Optional |
| Surface Finish | Smooth / Hammered / Textured / Dot / Custom |
| Color Options | Customizable |
| Hardness | Customizable |
Mechanical Performance
| Wear Resistance | Group T |
| Residual Indentation | < 0.10 mm |
| Dimensional Stability | < 0.40% |
| Forklift Traffic | Suitable |
| AGV Compatibility | Suitable |
| Castor Chair Resistance | Suitable |
Safety & Functional Performance
| Fire Performance | B1 |
| Slip Resistance | R9 |
| Anti-Static Performance | 10⁵ – 10⁹ Ω |
| Chemical Resistance | No Visible Effect |
| Water Resistance | Excellent |
| Oil Resistance | Excellent |
| Color Fastness | Grade ≥ 8 |
Environmental Compliance
| Hazardous Substance Restriction | Compliant |
| Lead (Pb) | ND |
| Cadmium (Cd) | ND |
| Mercury (Hg) | ND |
| Hexavalent Chromium (Cr⁶⁺) | ND |
| PBB / PBDE | ND |
| Phthalates (DEHP / BBP / DBP / DIBP) | Compliant |
| VOC Emission | Low VOC |
QUALITY ASSURANCE
Testing Standards
Technical specifications above are evaluated according to recognized international and industry testing standards, including:
EN ISO 24346
EN ISO 24343-1
EN 660
DIN 51130
ASTM F925
ASTM F150
EN 425
GB 8624-2012
GB 18586-2001
Note: Technical values shown above represent typical performance data and may vary depending on product structure, surface texture, and application requirements. Customized specifications are available upon request.
