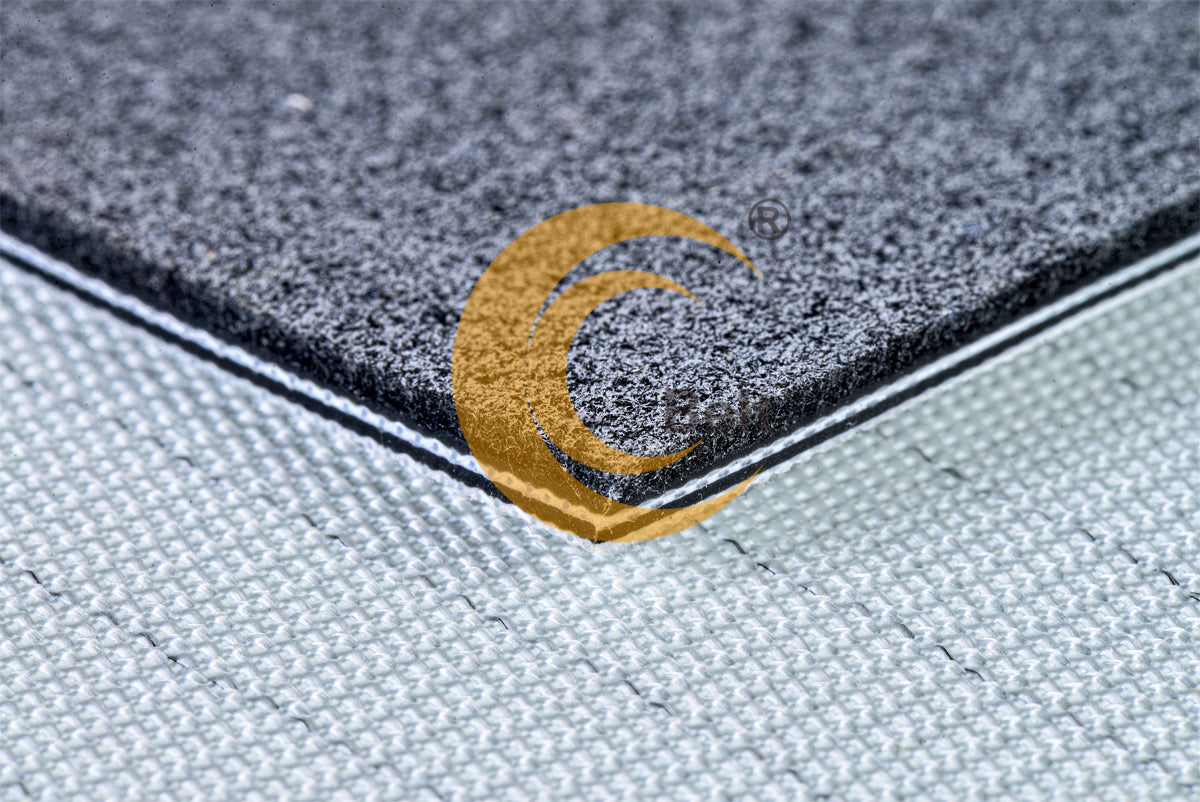

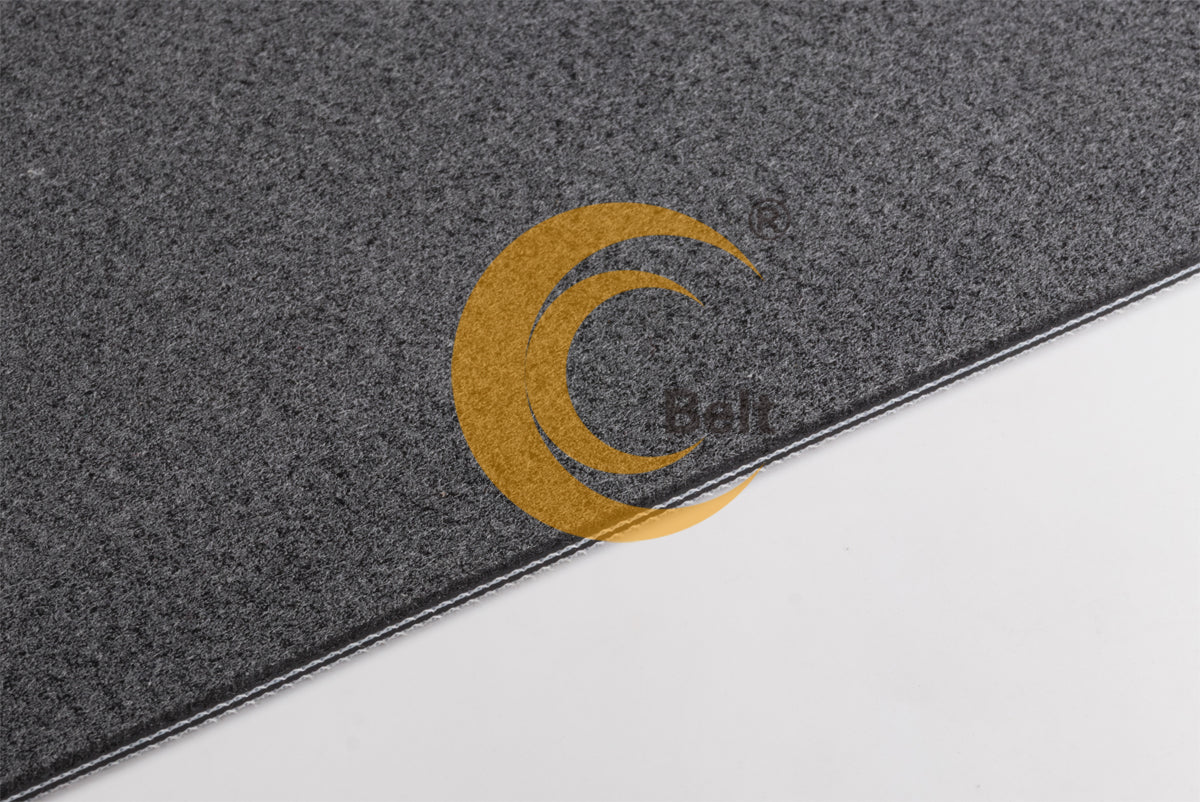

This felt top conveyor belt is engineered for sensitive conveying applications requiring durability, surface protection, and thermal stability. Featuring anti-static and anti-cutting properties, this belt resists oils, abrasion, and mechanical impact while maintaining reliable performance across a wide temperature range. Its felt surface provides cushioning and grip, making it a proven solution for logistics systems, electronics handling, and tire production lines.
Key Features
Custom colors, thicknesses, profiles and special features available upon request, please contact us for more information.
| TYPE # | |
| EM120/2:0+0F/4.0B/AS | |
| REFERENCE # | |
| GENERAL CHARACTERISTICS: | |
| SUITABLE FOR MOST OF PRODUCTION LINES | |
| GENERAL TRANSPORT | |
| ESPECIALLY FOR HOUSEHOLD APPLIANCES | |
| AND PAINT SPRAYING, ANTI-CUTTING APPLICATION | |
| TECHNICAL CHARACTERISTICS : | |
| Total Thickness | 4.0 mm |
| No. of Plies | 2 |
| Fabric | Polyester |
| Weft | Rigid |
| Weight | 4.4 kg(s)/㎡ |
| Working Temperatures | -10 ºC to + 80 ºC |
| 1. Top cover | |
| Thickness | 1.6 mm |
| Material | Felt |
| Color | Black (B) |
| Surface | - |
| Hardness | - |
| 2. Internal layer(s) | |
| Material | PVC |
| Color | Black (B) |
| 3. Bottom cover | |
| Thickness | - |
| Material | - |
| Color | Natural |
| Surface | Bare Fabric |
| Hardness | - |
| Anti-static Yarn | Yes |
| BELT TENSION: | |
| Tensile Strength(N/mm) | 120 |
| Max. Suggested Load(N/mm) | 8 |
| Working Load 1% Elongation(N/mm) | 10 |
| FRICTION COEFFICIENTS ON: | |
| Smooth Stainless Steel | 0.18 |
| REMARKS | |
| Max. Manufacturing Width | 2000mm |
| Standard Width | 2000mm |
| MINIMUM PULLEY DIAMETERS: | |
| Front Flexing | 100 mm |
| Back Flexing | 140 mm |
| CONVEYOR FRAME: | |
| Horizontal Rollers | Yes |
| Slider bed | Yes |
| Troughed application | No |
| SPECIAL CHARACTERISTICS: | |
| Food Grade | No |
| Oil Resistant | No |
| Flame Retardant | No |
| Surface Antistatic | Yes |
| Cold Resistant | No |
| JOINING INSTRUCTIONS: | |
| Finger Joint | Yes |
| Welding Temperature（°C） | 175 ºC ± 10 ºC |
| Pressure | 2 bar |
| Cooling | Cool Immediately |
