PVC-Rubber Heavy-Duty Sanding Belt for Wood Panels

This heavy-duty PVC+Rubber conveyor belt combines exceptional grip, flexibility, and abrasion resistance.

Heavy duty construction: 3ply construction with PVC-rubber compound ensuring durability and longevity;
Soft High Grip Surface: Minimizes vibration, enhances surface finish, provides excellent traction for consistent sanding pressure;

Custom colors, thicknesses, profiles and special features available upon request, please contact us for more information.

TYPE #

EM300/3:0.1+6.0LD/RUB/9.0GR

REFERENCE #

GENERAL CHARACTERISTICS:

SUITABLE FOR MOST OF LINES AND PRODUCTS

GENERAL TRANSPORT

HEAVY DUTY

ESPECIALLY FOR WOOD PROCESSING

TECHNICAL CHARACTERISTICS :

Total Thickness 9.0 mm

No. of Plies 3

Fabric Polyester (EM)

Weft Rigid

Weight 8.5 kg(s)/㎡

Working Temperatures -10 ºC to + 70 ºC

1. Top cover 　

Thickness 6.0 mm

Material PVC+RUBBER

Color Grey (GR)

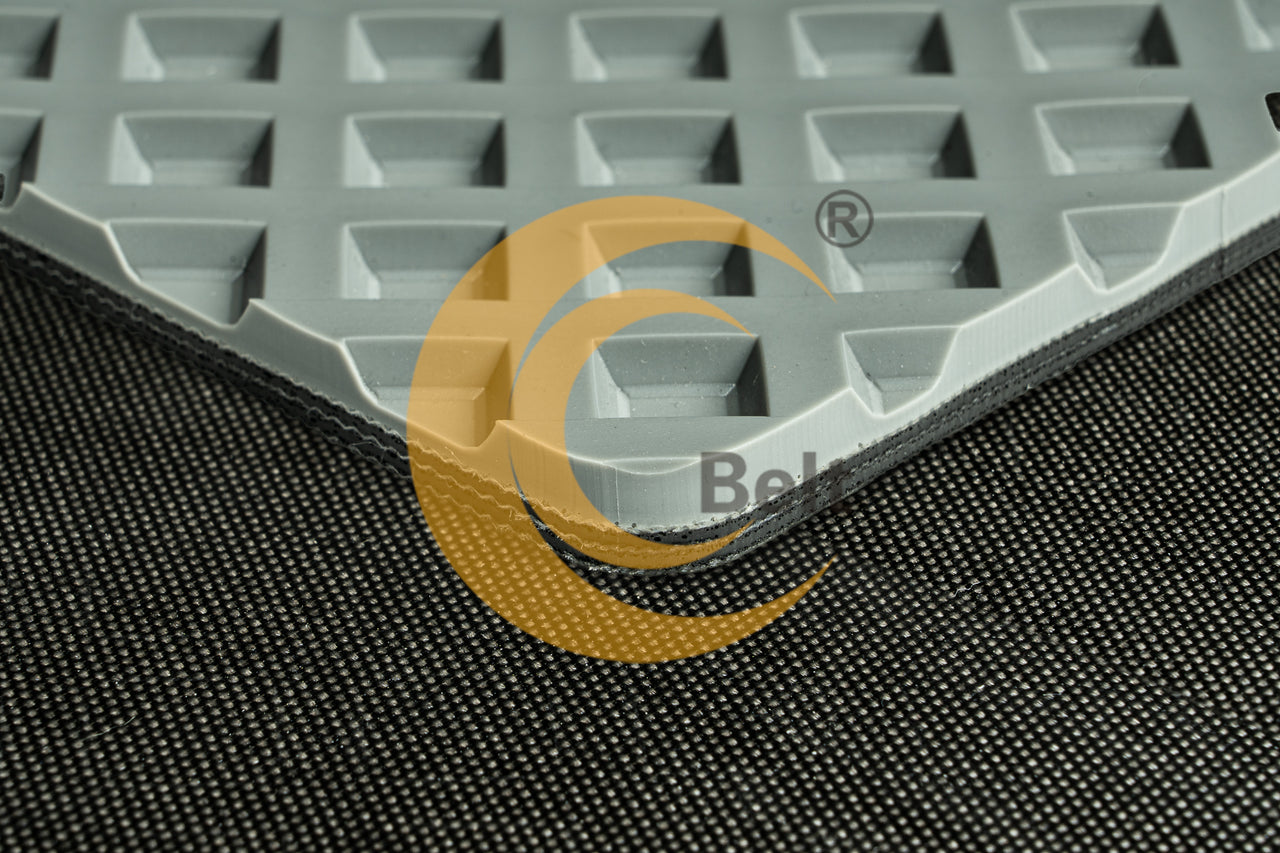

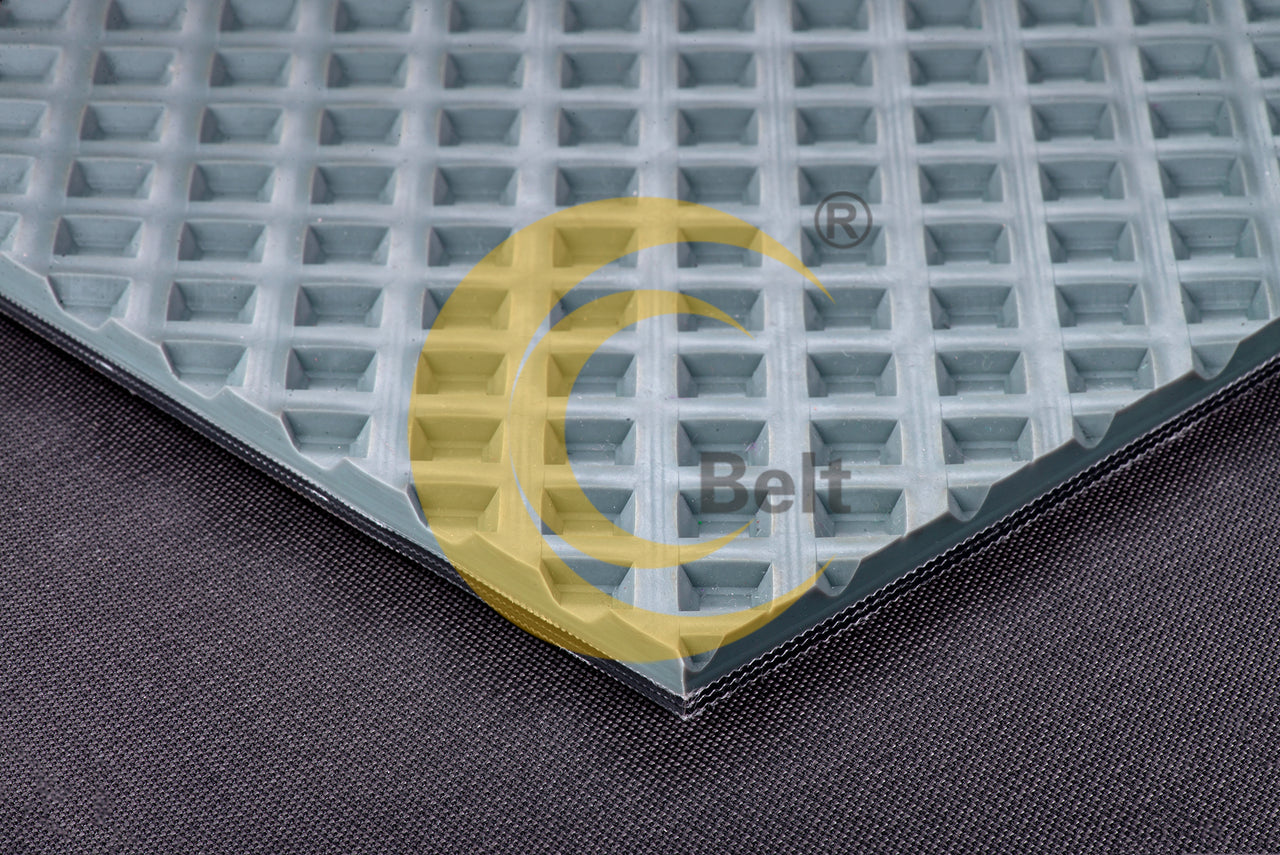

Surface Diamond 40 (LD)

Hardness 55 ShA

2. Internal layer(s)

Material PVC

Color Black (B)

3. Bottom cover 　

Thickness 0.1 mm

Material PVC

Color Black

Surface Fabric with Impregnation

Hardness -

Anti-static Yarn -

BELT TENSION:

Tensile Strength(N/mm) 300

Max. Suggested Load(N/mm) 12

Working Load 1% Elongation(N/mm) 14

FRICTION COEFFICIENTS ON: 　

Smooth Stainless Steel 0.18

REMARKS 　

Max. Manufacturing Width 2000mm

Standard Width 2000mm
